Fluke Current Probe โพรบแคลมป์วัดกระแส

Fluke Current Probe โพรบแคลมป์วัดกระแส


Model: Fluke Current Probe
   อุปกรณ์เสริม    Fluke


Picture Description

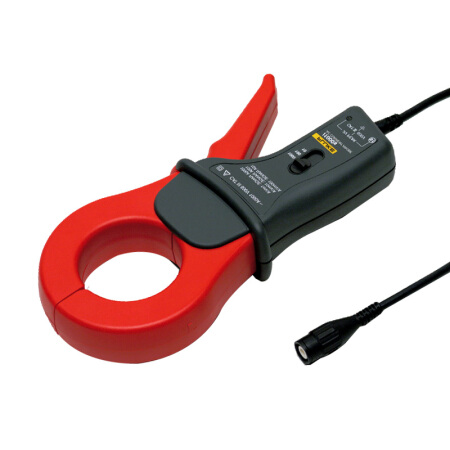

Fluke i1000s AC Current Probe
  • Allows accurate measurement of currents from 100 mA to 1000 A rms, 5 Hz to 100 kHz without breaking into the circuit
  • A passive filter eliminates noise and ring on rapidly rising di/dt waveform, ensuring accurate screen displays
  • Connects directly to an oscilloscope through a reinforced coaxial cable and an insulated BNC connector
  • Can be used with multimeters with optional PM9081/001 BNC/Banana adapter

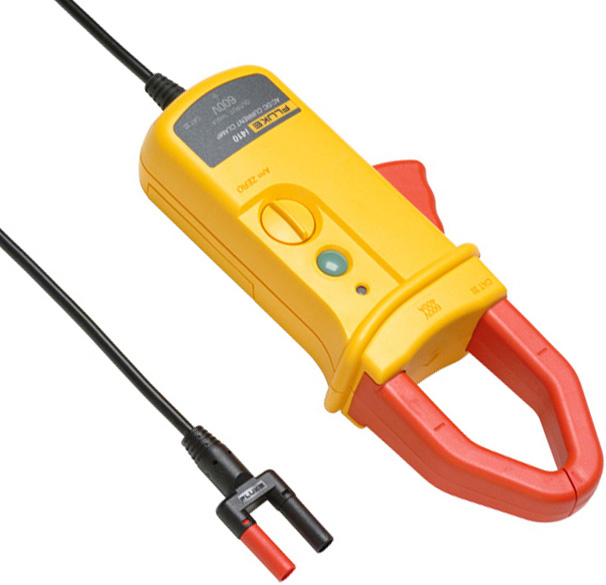

Fluke i1010 AC/DC Current Clamp

  • Measures 1 A to 1000 A and provides accurate current reading without breaking the circuit
  • ac and dc current with a large jaw
  • Compatible with most Fluke multimeters

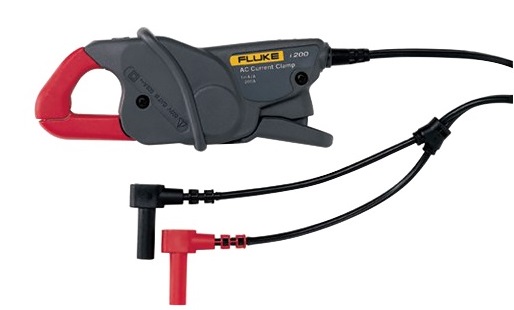

Fluke i200 AC Current Clamp
  • Companion to a DMM for measuring up to 200 A AC
  • 1 mA per Amp output guarantees easy reading on you meter
  • Take accurate current readings without breaking the circuit
  • Max. conductor Ø 20 mm

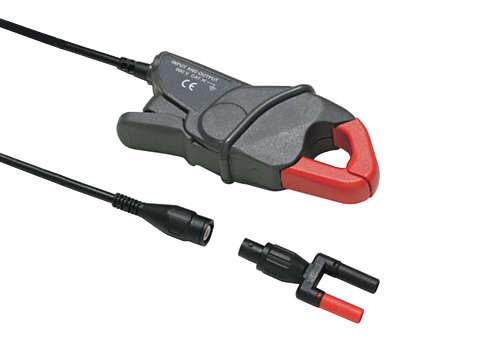

Fluke i200s AC Current Clamp
  • Companion to your scopemeter, power quality meter or digital multimeter to measure up to 200 A AC
  • Included adapter for DMM's
  • Two ranges: 20 A & 200A, 10 or 100 mV/ Amp output
  • Take accurate current readings without breaking the circuit
  • Max. conductor Ø 20 mm

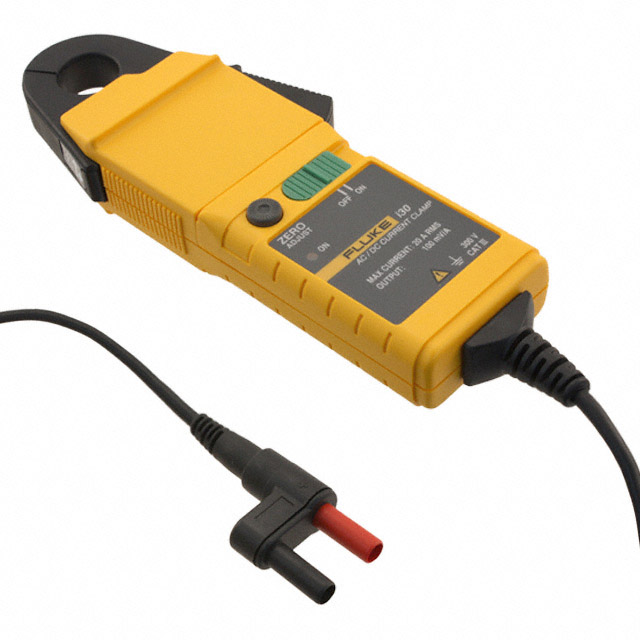

Fluke i30 AC/DC Current Clamp

  • Specified current range : 30 mA to 30 A DC, 30 mA to 20 A AC rms
  • Usable current range : 5 mA to 30 A DC, 30 mA to 20 A AC rms

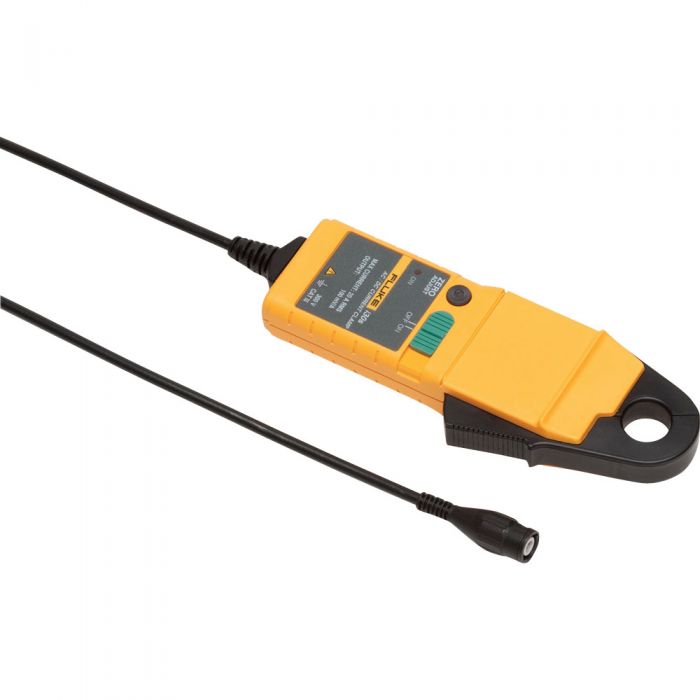

Fluke i30s AC/DC Current Clamp
  • Specified current range : 30 mA to 30 A DC, 30 mA to 20 A AC rms
  • Usable current range : 5 mA to 30 A DC, 30 mA to 20 A AC rms

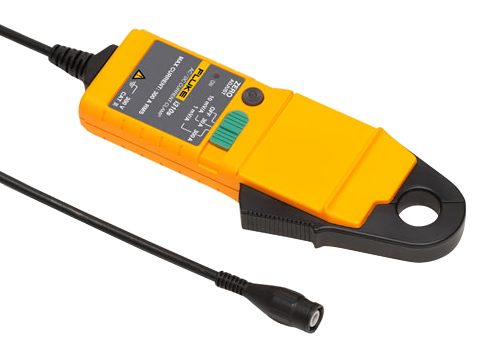

Fluke i310s Current Probe
  • Current Ranges: 30 A and 300 A ACRMS or ±45 A and 450 A DC
  • Measuring Ranges: ±45 A and 450 A dc
  • Output Sensitivity: 10 mV/A (40 A) to 1 mV/A (400 A)
  • Resolution: ±50 mA (40 A) to ±100 mA (400 A)

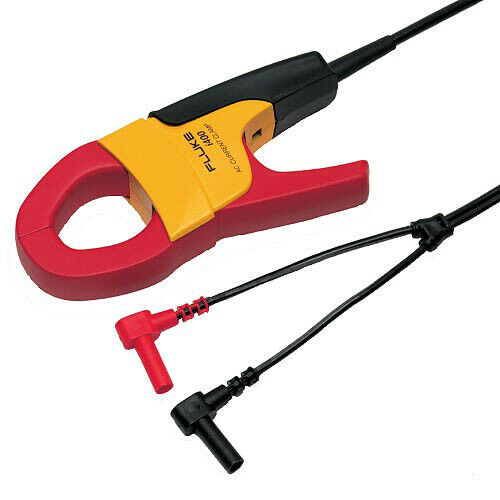

Fluke i400 AC Current Clamp
  • Companion to your DMM to measure up to 400 A AC
  • 1 mA/Amp output guarantees easy reading on you meter
  • Max. conductor Ø 32 mm

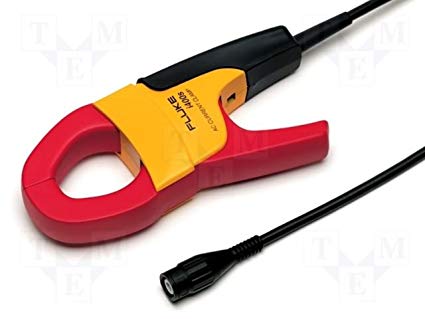

Fluke i400s AC Current Clamp
  • Max. conductor Ø 32 mm
  • Optional PM9081/001 BNC/Banana adapter for DMM's
  • Two ranges: 40 A and 400 A, 10 and 1 mV/Amp output

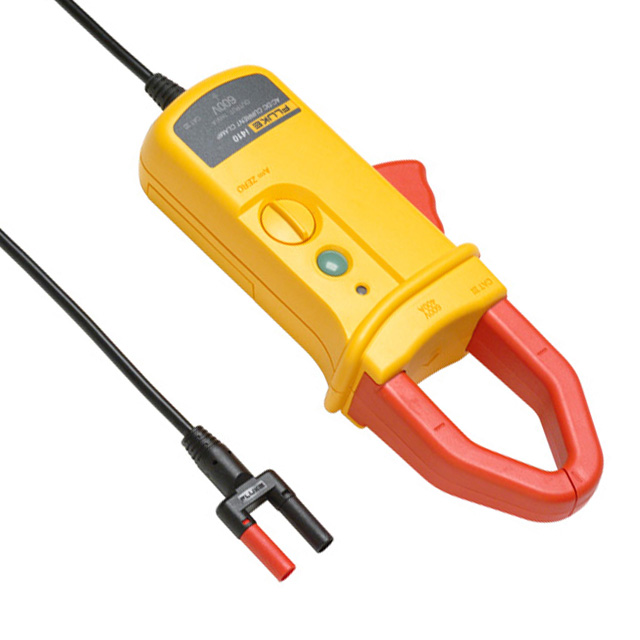

Fluke i410 AC/DC Current Clamp
  • Battery-powered Hall-effect probe measures 1A to 400 A
  • 1mV/Amp output guarantees easy reading on your meter
  • Take accurate current readings without breaking the circuit
  • Maximum conductor Ø 32 mm
Fluke i5sPQ3, 5 A AC Current Clamps, 3-pack
  • Low level current clamp measures up to 5 A AC
  • Compact shape makes transporting and storing convenient; the clamp measures only 116 x 43 x 23 mm (4. 6 x 1.7 x .9 in)
  • Take accurate readings without breaking the circuit

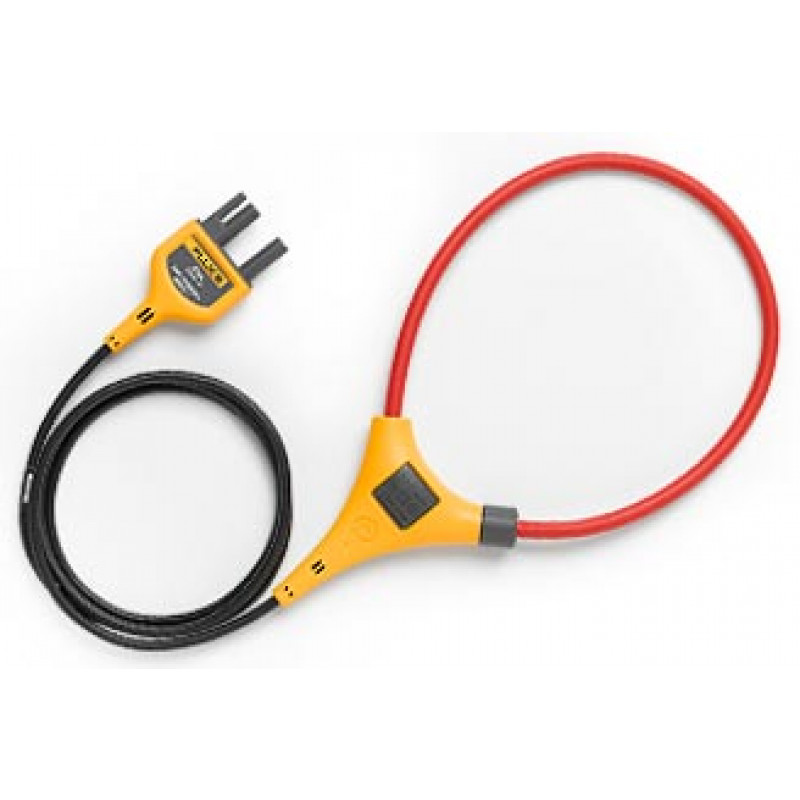

Fluke i2500-18 iFlex® Flexible Current Probes
  • Expands the Measurement Range to 2500 A AC while Providing Increased Display Flexibility, Ability to Measure Awkward Sized Conductors and Improved Wire Access
  • CAT IV 600 V, CAT III 1000 V
  • 7.5 mm Coil Diameter Allows Measurement in Tight Spaces
