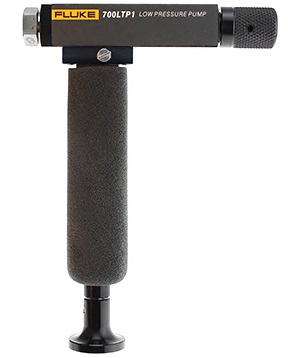

• pressures up to 150 psi/1000 kPa. Output fitting is 1/8 FNPT.
• Application: Linear stroke of 4 cm. Multi-turn vernier for fine adjustment of pressure.

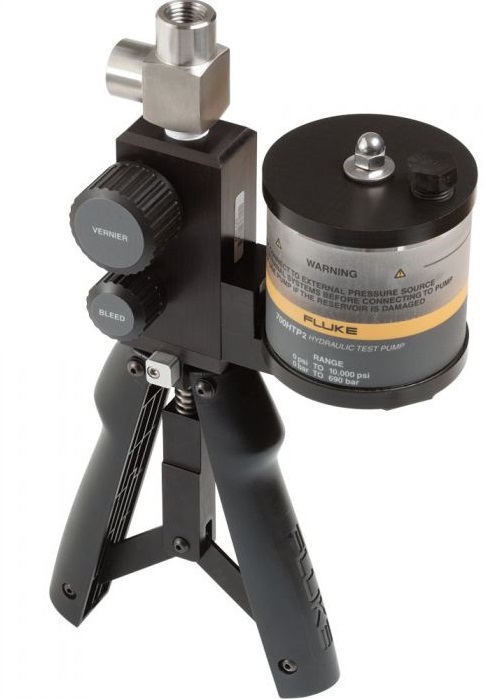

Fluke 700HTP-2 Hydraulic Test Pump

• Hydraulic pressure pump designed to generate calibration pressures up to 10,000 psi/690 bar. Designed for use with Fluke-700 series high pressure modules such as the Fluke-700P09, 700P29, 700P30 and 700P31.

• Pressure pump designed to generate either vacuum to -13 psi / - .90 bar or pressures to 100 psi / 6.9 bar.
• Quick fit connectors, one for the reference port for connection to a Fluke 700 series pressure module and one to connect to a unit under test

• Pressures up to 600 psi, 40 bar.
• Pump can be easily cleaned without disassembly
• The vernier can be used as a stand-alone low pressure calibration source

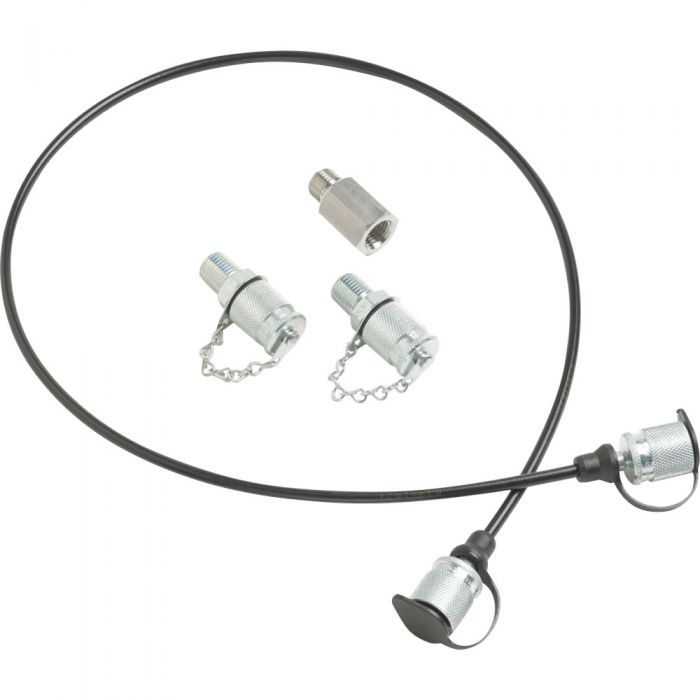

 Fluke 700HTH-1 Hydraulic Test Hose

• Hydraulic test hose is a 10,000 psi, 690 bar
• Includes plugs and caps to eliminate fluid loss in hose, eliminates the need to re-prime the hose
• Self-sealing fittings with easy finger tight connections
• Low volumetric expansion and a negligible pressure drop at rated pressures

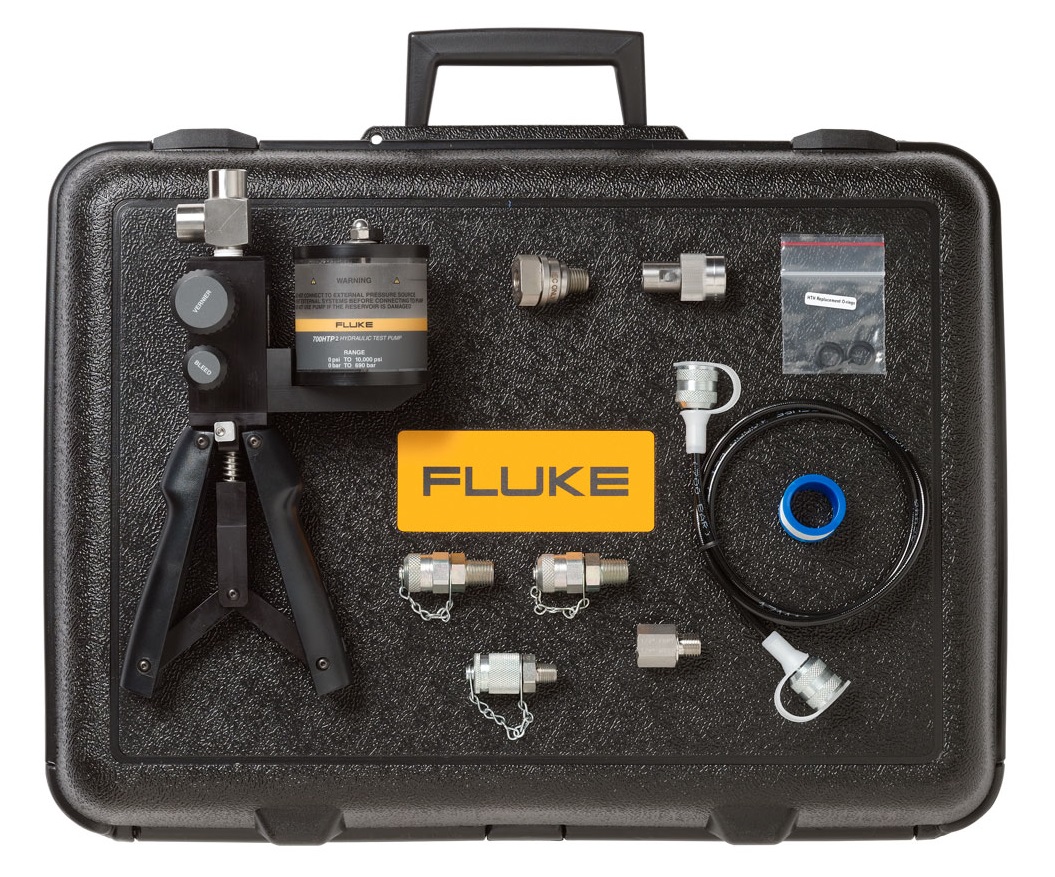

• Combine with any Fluke 700G Series Gauge, 1,000 psi (69 bar) range or greater, to make a complete pressure testing kit
• Generate pressure up to 10,000 psi, 690 bar with the included 700HTP-2 test pump
• Connect the 700G Series Gauge, directly to the HTP-2 hand pump with premium no tools required adapter
• Includes 700TTH 10K premium/no tools required transmitter test hose kit and adapters for connecting to the pressure device to be tested
• Hard case protects pump and gauge and allows gauge to remain connected to the pump

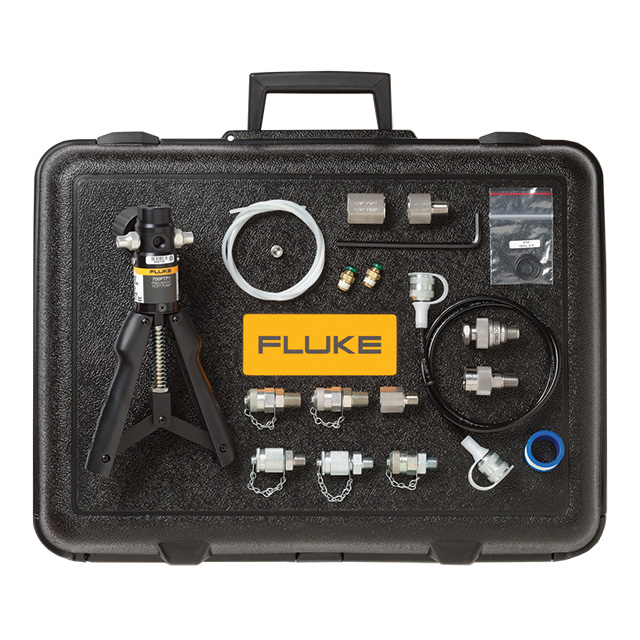

• Combine with any Fluke 700G Series Gauge, 1,000 psi (69 bar) or less, to make a complete pressure testing kit

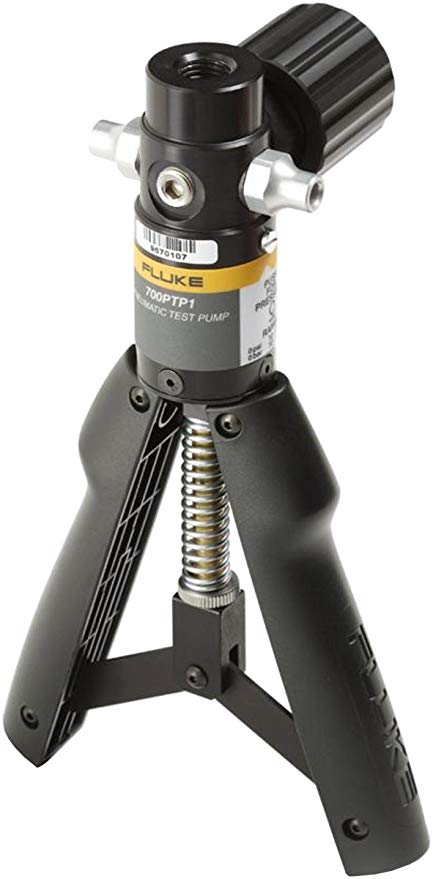

• Generate pressure up to 600 psi, 40 bar with the 700PTP-1 test pump
• Connect the 700G Series Gauge directly to the included PTP-1 hand pump with premium no tools required adapter
• Includes 700TTH 5K premium/no tools required transmitter test hose kit and adapters for connecting to the pressure device to be tested
• Hard case protects pump and gauge and allows gauge to remain connected to the pump.
